  • ABB MINI PREM 8M PRESDET SIL 6131/21-183-500

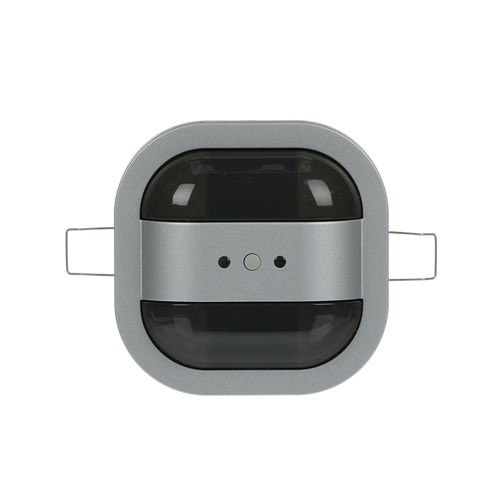

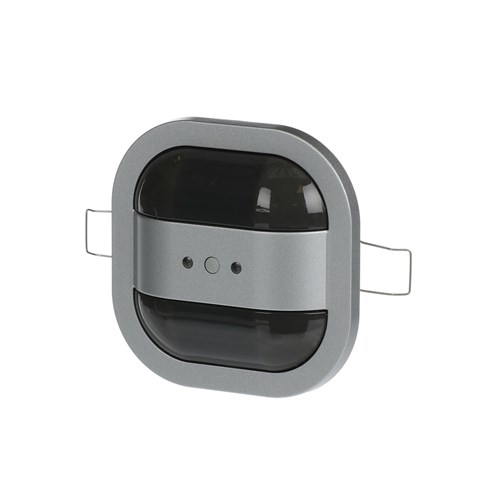

ABB MINI PREM 8M PRESDET SIL 6131/21-183-500

Product Code: AB-613121-183500

Brand
ABB
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB
Series KNX Presence Detection

6131/21-183-500

  • Extended Product Type: 6131/21-183-500
  • Product ID: 2CKA006132A0345
  • EAN: 4011395185919
  • Catalog Description: 6131/21-183-500 KNX Presence Mini Pre W
  • Long Description: Detection range (for mounting height 2.5 m, 3 m and 4 m): circular. Seated persons Ø: max. 5 m, max. 6.5 m and max. 9 m. Walking persons Ø: max. 6.5 m, max. 8 m and max. 10.5 m. Visible height 16 mm. With 4 channels. For dimming/brightness of the rules to a defined value in a designated collection area. HVAC function for controlling heating and/or cooling systems and ventilation systems in the designated collection area. Detectors application with 2 power off stages. Detectors application with integrated monitoring function. Constant light controller with up to two independent channels. Constant light controller with max. 2 outputs for dimming daylight control/rules of two rooflights in the room. Integrated object room temperature controller. 10 freely programmable IR channels (blue and/or white) Incl. 5 logic channels (logic gates, gates, delay and staircase lighting) Evaluation via internal brightness sensor. Weighting of up to 2 external brightness values ​​and the internal brightness sensor possible. The programming button can be activated with the IR transmitter 6010-25 (-500). With integrated KNX bus coupler. Suitable for false ceilings with a board thickness from 9 to 25 mm. Hole size: Ø 68 mm. Suitable for surface mounting installation. Cannot be installed in British Standard or VDE flushmounted box. Recommendation: Installation housing from Kaiser HaloX-O (Art.no. 1290-40) with corresponding cover plates (1290-47 or 1290-85 for fair faced concrete) or IBTronic H120-68 from Spelsberg.

  • Installation
    • Mounting Type:
      • Surface Mounted
      • Flush Mounted
    • Mounting Position: Ceiling
    • Mounting Height: Optimum 2 ... 4 m
  • Environmental
    • Ambient Air Temperature: Operation -5 ... +45 °C
    • Degree of Protection: IP20
  • Technical
    • Measuring Range: 8 m
    • Number of Channels: 4
    • Compatible Bus Systems: KNX (TP)
    • Product Range: KNX
    • Minimum Switching Time: Switch-On 10 second [unit of time]
    • Number of Batteries: 0
  • Design
    • Surface Finishing:
      • Lacquered
      • Matt
    • Material: Thermoplastic
    • RAL Number: Similar to RAL 9006
    • Colour: aluminium silver
  • Dimensions
    • Product Net Width: 80 mm
    • Product Net Height: 80 mm
    • Product Net Depth / Length: 45 mm
    • Product Net Weight: 73 g
    • Built-In Depth (t2): 29 mm
