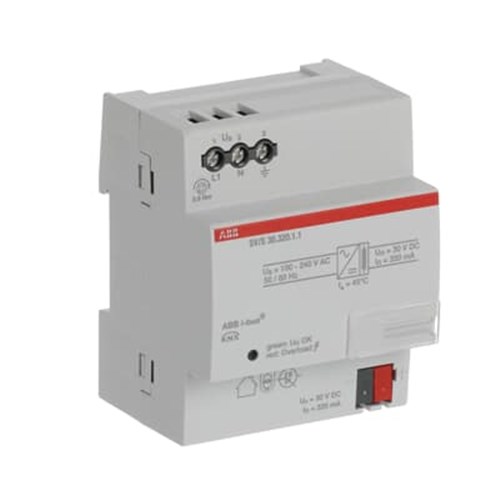

ABB KNX POWER SUPPLY 320MA 4MRDC SV/S30.320.1.1

Product Code: AB-SVS30.320.1.1

Brand
ABB
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB
Series KNX Power and Batteries

SV/S 30.320.1.1

General Information

  • Extended Product Type: SV/S 30.320.1.1
  • Product ID: 2CDG110166R0011
  • EAN: 4016779906197
  • Catalog Description: SV/S30.320.1.1 Power Supply, 320 mA, MDRC
  • Long Description: KNX power supplies 320 mA generate and monitor the KNX system voltage (SELV). The bus line is decoupled from the power supply by an integrated choke. The voltage output is short-circuit and overload protected. The two-color LED indicates device output status. With two-coloured status indicator and wide range input from 85…265 V AC, 50/60 Hz
  • Installation
    • Mounting Type: DIN-Rail
  • Environmental
    • Degree of Protection: IP20
  • Technical
    • Number of Outputs: 1
    • Number of LEDs: 1
    • Number of Integrated Chokes: 1
    • Number of Supplied Lines: 1
    • Compatible Bus Systems: KNX (TP)
    • Product Range: KNX
    • Manual Operation: No
    • Number of Batteries: 0
  • Electrical
    • Voltage Range: 110 ... 230 V AC
    • Output Voltage (Uout): 30 V DC
    • Buffer Voltage: No
    • Output Current Maximum (Iout): 0.32 A
    • Power Loss: 6 W
  • Design
    • Colour: light grey
  • Dimensions
    • Width in Number of Modular Spacings: 4.0
    • Product Net Width: 72 mm
    • Product Net Height: 90 mm
    • Product Net Depth / Length: 64.5 mm
    • Product Net Weight: 0.26 kg
