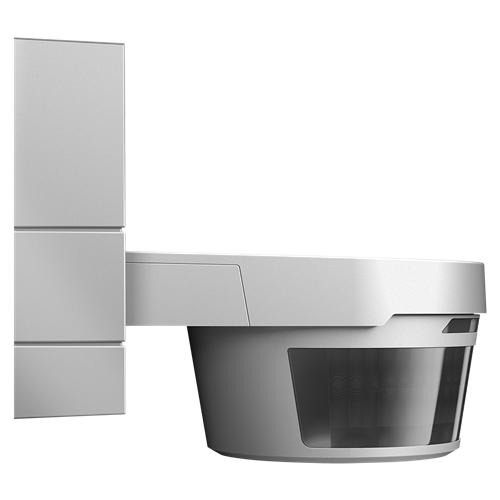

ABB BASIC WATCHDOG SENSOR SIL 6179/01-208-500

Product Code: AB-617901-208500

Brand
ABB
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB
Series KNX Presence Detection

6179/01-208-500

General Information

  • Extended Product Type: 6179/01-208-500
  • Product ID: 2CKA006132A0314
  • EAN: 4011395168561
  • Catalog Description: Horizontal 0 ... 220 ° Presence Detection silver metallic
  • Long Description: With 2 movement channels. With 1 twilight channel with 3 switching thresholds. No remote control possible via IR remote control KNX. With integrated KNX bus coupler. No additional power supply necessary. Surveillance density: 92 sectors with 368 switching segments. Twilight sensor: approx. 1 - 1000 lux Switch-off delay: approx. 10 sec to 1092 min Sensor angle: 220° Range: approx. 16 m
  • Installation
    • Mounting Type: Surface Mounted
    • Mounting Position:
      • Wall
      • Ceiling
    • Mounting Height: Optimum 2.5 m
  • Environmental
    • Ambient Air Temperature: Operation -25 ... +55 °C
    • Degree of Protection: IP55
  • Technical
    • Number of Channels: 2
    • Compatible Bus Systems: KNX (TP)
    • Product Range: KNX
    • Minimum Switching Time: Switch-On 10 second [unit of time]
    • Sensor Detection Range: Horizontal 0 ... 220 °
  • Design
    • Surface Finishing:
      • Untreated
      • Matt
    • Material: Thermoplastic
    • Color: silver metallic
  • Dimensions
    • Product Net Width: 125 mm
    • Product Net Height: 115 mm
    • Product Net Depth / Length: 141 mm
    • Product Net Weight: 317 g
    • Built-In Depth (t2): 0 mm
