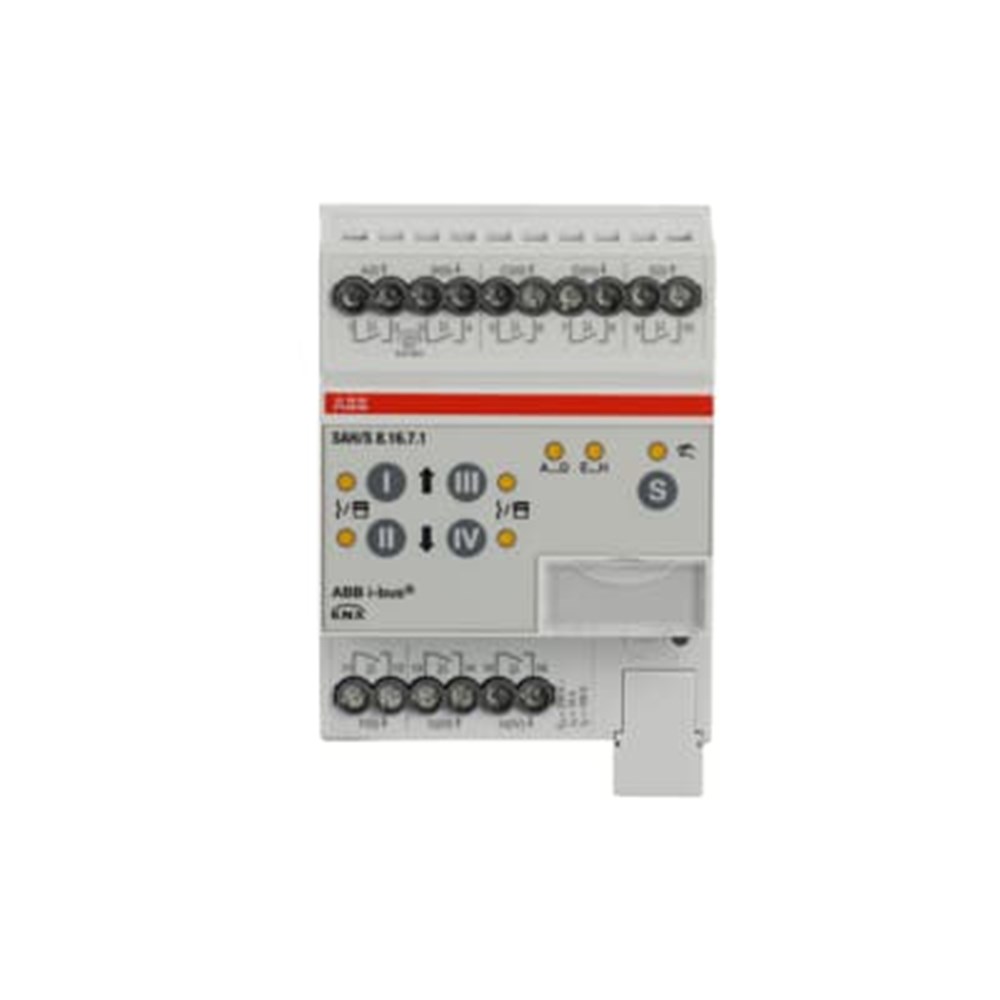

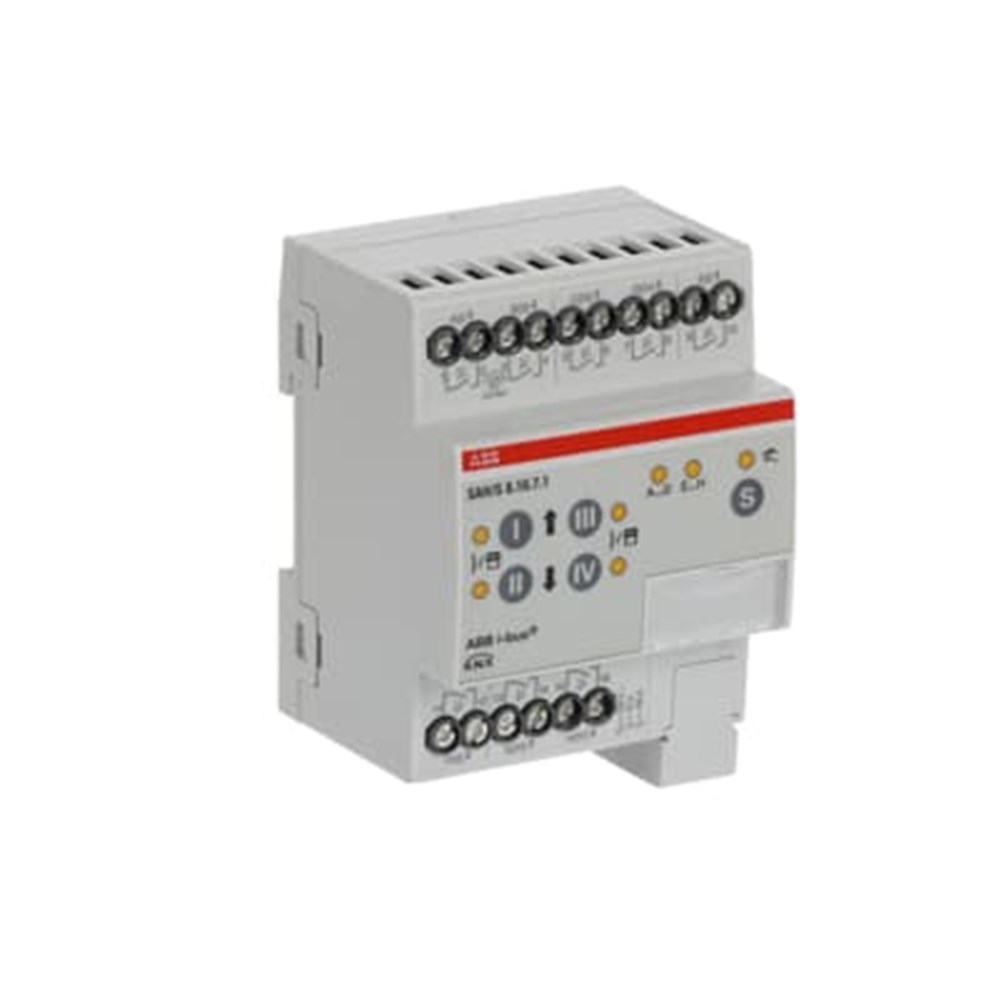

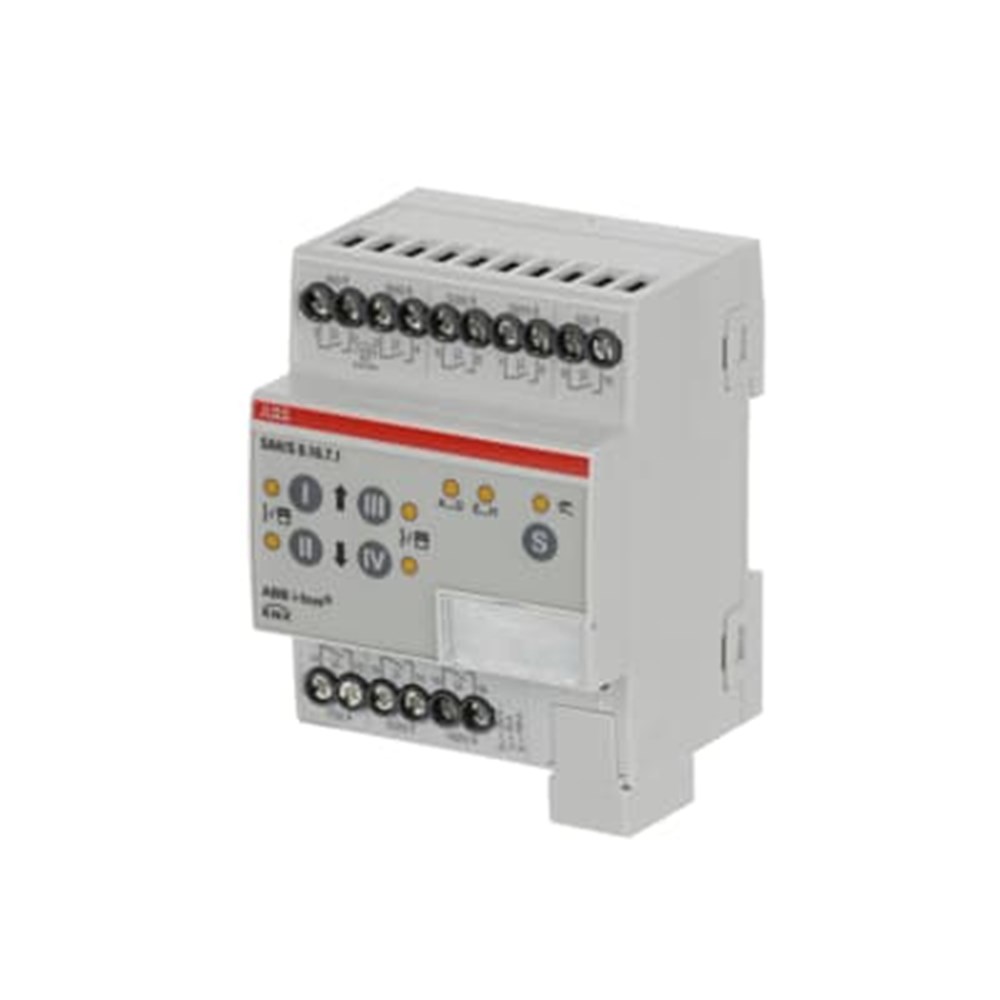

ABB 8CH COMBI SWITCH ACTUATOR 16A 4MRDC SAH/S8.16.7.1

Product Code: AB-SAHS8.16.7.1

Brand
ABB
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB
Series KNX Actuators

SAH/S8.16.7.1

General Information

  • Extended Product Type: SAH/S8.16.7.1
  • Product ID: 2CDG110250R0011
  • EAN: 4016779066846
  • Catalog Description: SAH/S8.16.7.1 Switch/Shutter Actuator, 8-fold, 16 A, MDRC
  • Long Description: The compact 16 A combi switch actuator has 8 independent switching relays. The outputs can be used individually via ABB i-bus® KNX for switching electrical loads or in pairs for controlling 230 V AC roller shutter or blind drives (no electromechanically interlocking). The device features a manual operation, which can also be disabled. Via the manual operation the outputs can be operated manually and the switching or driving status is displayed. The device is powered by KNX and requires no additional power supply.
  • Installation
    • Mounting Type: DIN-Rail
  • Environmental
    • Ambient Air Temperature: Operation -5 ... +45 °C
    • Degree of Protection: IP20
  • Technical
    • Contact Position Indication: ON / OFF
    • Number of Outputs: 8
    • Number of LEDs: 8
    • Maximum Number of Switching Outputs: 8
    • Compatible Bus Systems: KNX (TP)
    • Product Range: KNX
    • Manual Operation: Yes
    • Suitable for C-Load: No
    • Number of Batteries: 0
  • Electrical
    • Voltage Range: 230 V AC
    • Auxiliary Voltage AC/DC: KNX
    • Output Voltage (Uout): 230 V AC
    • Rated Current (In): 16 A
    • Maximum Switching Current: 16 A
    • Maximum Switching Power: 1200 W
    • Load Type: AC1
    • Power Loss: 4 W
  • Design
    • Colour: light grey
  • Dimensions
    • Width in Number of Modular Spacings: 4.0
    • Product Net Width: 70 mm
    • Product Net Height: 90 mm
    • Product Net Depth / Length: 63.5 mm
    • Product Net Weight: 0.272 kg
    • Built-In Depth (t2): 64.5 mm
