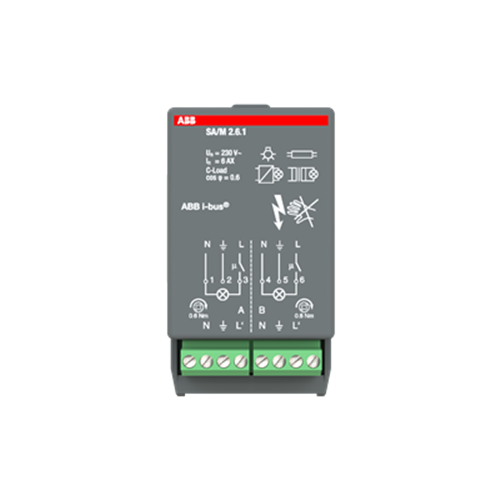

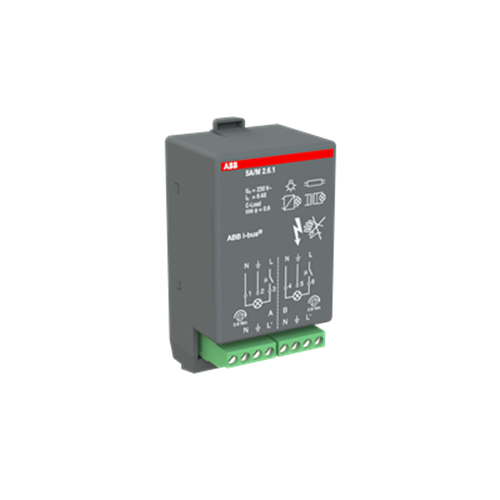

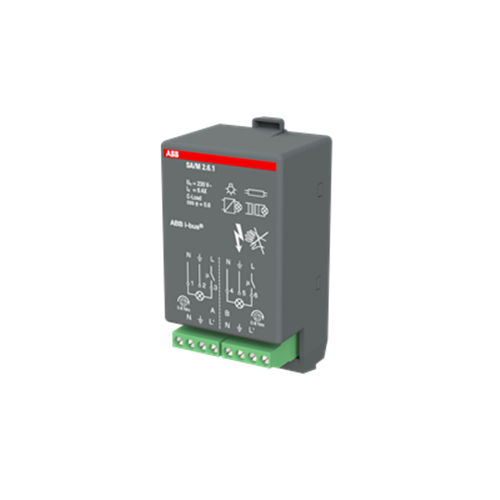

ABB 2CH SWITCH ACTUATR MOD 16A FLOATING CONTACT SA/M2.16.1

Product Code: AB-SAM2.16.1

Brand
ABB
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB
Series KNX Multifunction Room Automation

SA/M2.16.1

General Information

  • Extended Product Type: SA/M2.16.1
  • Product ID: 2CDG110100R0011
  • EAN: 4016779681582
  • Catalog Description: SA/M2.16.1 Switch Actuator Module, 2-fold, 16 A
  • Long Description: Switches up to 16 A with two floating relay contacts. The feeding voltage is independent from the Room Controller Basis Device. It must thus be applied directly to the module.
  • Installation
    • Mounting Type: Built-in
  • Environmental
    • Degree of Protection: IP54
  • Technical
    • Number of Outputs: 2
    • Maximum Number of Switching Outputs: 2
    • Compatible Bus Systems: KNX (TP)
    • Product Range: KNX
    • Manual Operation: No
    • Suitable for C-Load: Yes
    • Number of Batteries: 0
  • Electrical
    • Voltage Range: 230 V
    • Output Voltage (Uout): 230 V AC
    • Rated Current (In): 16 A
    • Maximum Switching Current: 16 A
    • Maximum Switching Power: 2300 W
    • Power Loss: 0 W
  • Design
    • Colour: anthracite
  • Dimensions
    • Product Net Width: 49 mm
    • Product Net Height: 42 mm
    • Product Net Depth / Length: 93 mm
    • Product Net Weight: 0.12 kg
