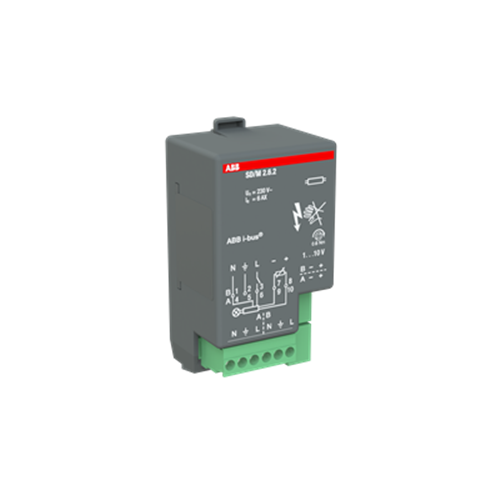

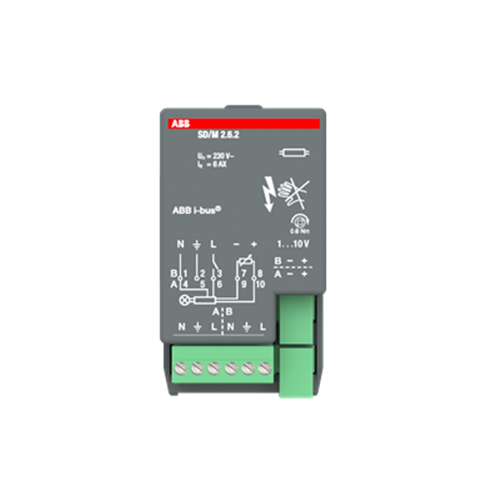

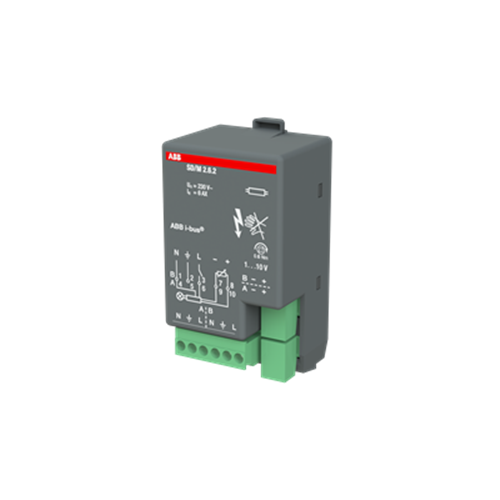

ABB 2CH 1-10V 6AX MODULE SD/M2.6.2

Product Code: AB-SDM2.6.2

Brand
ABB
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB
Series KNX Multifunction Room Automation

SD/M2.6.2

General Information

  • Extended Product Type: SD/M2.6.2
  • Product ID: 2CDG110107R0011
  • EAN: 4016779680660
  • Catalog Description: SD/M2.6.2 Switch/Dim Actuator Module, 2-fold, 6 AX
  • Long Description: Module for plugging into the Room Controller Basis Device. It enables the switching and dimming of two groups of luminaires in connection with electronic ballasts via a 1-10 V control voltage. High switching capacity.

  • Installation
    • Mounting Type: Built-in
    • Mounting on DIN Rail: No
  • Environmental
    • Degree of Protection: IP20
  • Technical
    • Number of Outputs: 2
    • Compatible Bus Systems: KNX (TP)
    • Product Range: KNX
    • Manual Operation: No
    • Suitable for C-Load: Yes
    • Number of Batteries: 0
  • Electrical
    • Rated Operational Voltage: 230 V AC
    • Voltage Range: 230 V
    • Output Voltage (Uout): 230 V AC
    • Rated Current (In): 6 A
    • Maximum Switching Current: 6 A
    • Maximum Control Current DC: 30 mA
    • Rated Frequency (f): 50 Hz
    • Maximum Switching Power: 1380 W
    • Load Type: Universal
    • Power Loss: 0 W
  • Design
    • Colour: anthracite
  • Dimensions
    • Product Net Width: 49 mm
    • Product Net Height: 42 mm
    • Product Net Depth / Length: 93 mm
    • Product Net Weight: 0.13 kg
