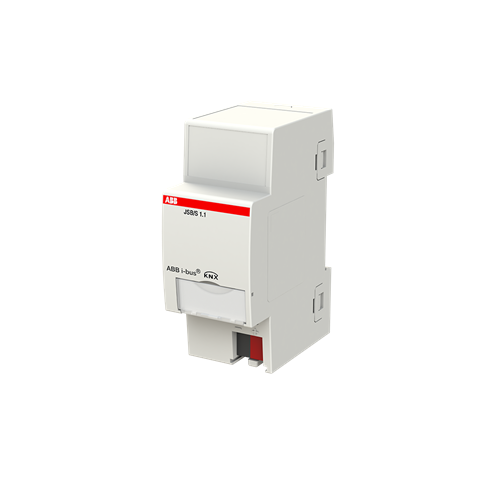

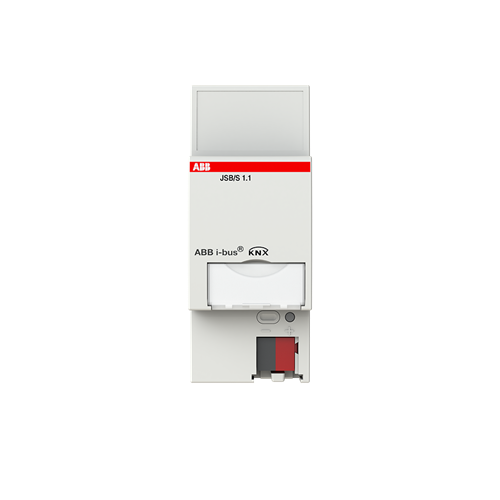

ABB 1CH SHUTTER CONTROL UNIT SUN CONTROL, 2 MRDC JSB/S1.1

Product Code: AB-JSBS1.1

Brand
ABB
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB
Series KNX Shading Control

JSB/S 1.1

  • Extended Product Type: JSB/S 1.1
  • Product ID: GHQ6310084R0111
  • EAN: 4016779579933
  • Catalog Description: JSB/S1.1 Shutter Control Unit, MDRC
  • Long Description: Controls shutter and blind actuators according to the position of the sun. The shutter control unit contains the functions of anti-glare protection and daylight redirection for up to 4 facades. Automatic shading can be implemented for every building and climatic control can be supported by the comprehensive range of parameter settings in the ETS.

  • Installation
    • Wiring Diagram: 9AKK108469A5511
    • Mounting Type: DIN-Rail
  • Environmental
    • Degree of Protection: IP20
  • Technical
    • Number of LEDs: 1
    • Compatible Bus Systems: KNX (TP)
    • Product Range: KNX
    • Manual Operation: No
    • Number of Batteries: 0
  • Electrical
    • Current Type: DC
    • Power Loss: 0.3 W
  • Design
    • Colour: light grey
  • Dimensions
    • Width in Number of Modular Spacings: 2
    • Product Net Width: 36 mm
    • Product Net Height: 90 mm
    • Product Net Depth / Length: 64.5 mm
    • Product Net Weight: 0.091 kg
    • Built-In Depth (t2): 64.5 mm
