ABB 1CH 1-10V 6AX MODULE LR/M1.6.2 - Amber Tech
Products

ABB

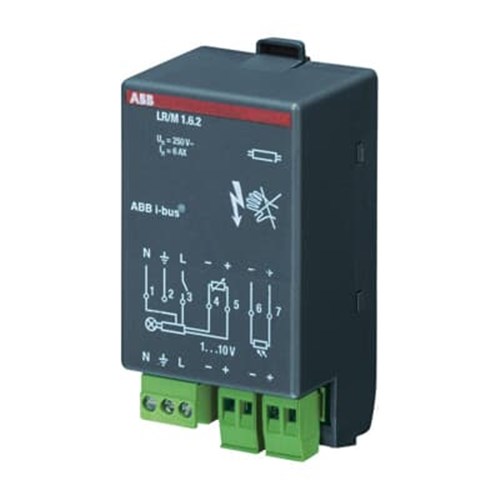

ABB 1CH 1-10V 6AX MODULE LR/M1.6.2

Product Code: AB-LRM1.6.2

Brand
ABB
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB
Series KNX Multifunction Room Automation

LR/M1.6.2

General Information

  • Extended Product Type: LR/M1.6.2
  • Product ID: 2CDG110108R0011
  • EAN: 4016779680677
  • Catalog Description: LR/M1.6.2 Light Controller Module, 1-fold, 6 AX
  • Long Description: Enables the switching and dimming of one group of luminaires via a 1...10 V control voltage. The device can be used for constant lighting control in connection with a Light Sensor LF/U 2.1.
  • Installation
    • Mounting Type: Built-in
  • Environmental
    • Degree of Protection: IP54
  • Technical
    • Number of Outputs: 1
    • Compatible Bus Systems: KNX (TP)
    • Product Range: KNX
    • Manual Operation: No
    • Number of Batteries: 0
  • Electrical
    • Voltage Range: 230 V
    • Output Voltage (Uout): 230 V AC
    • Maximum Switching Current: 6 A
    • Maximum Control Current DC: 30 mA
    • Power Loss: 0 W
  • Design
    • Colour: anthracite
  • Dimensions
    • Product Net Width: 49 mm
    • Product Net Height: 42 mm
    • Product Net Depth / Length: 93 mm
    • Product Net Weight: 0.1 kg
