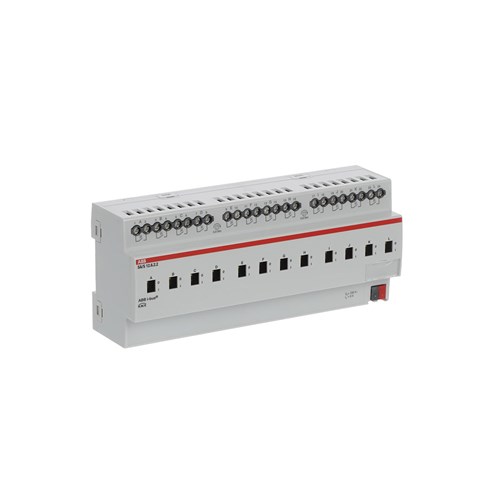

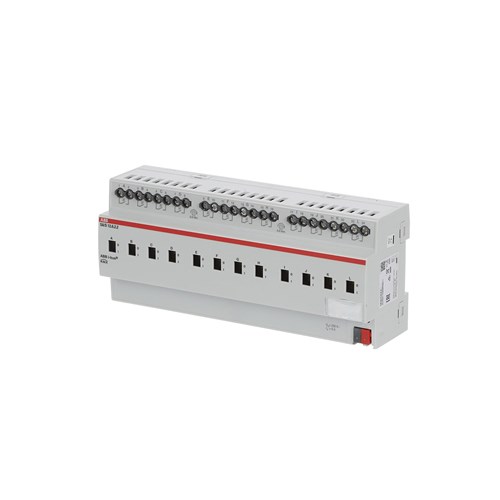

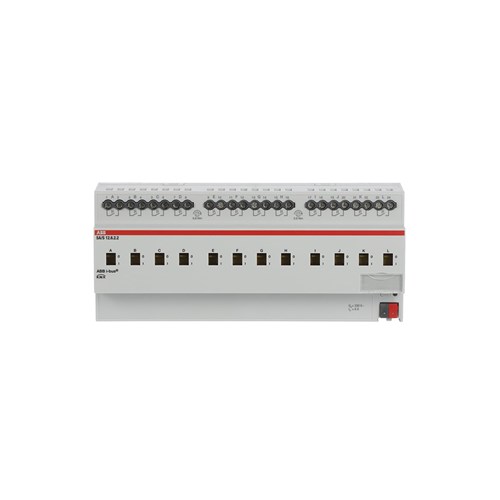

ABB 12CH 6A SWITCH ACTUATOR 12MRDC SA/S12.6.2.2

Product Code: AB-SAS12.6.2.2

Brand
ABB
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB
Series KNX Actuators

SA/S12.6.2.2

General Information

  • Extended Product Type: SA/S12.6.2.2
  • Product ID: 2CDG110256R0011
  • EAN: 4016779066778
  • Catalog Description: SA/S12.6.2.2 Switch Actuator, 12-fold, 6 A, MDRC
  • Long Description: The switch actuator uses potential free contacts to switch 12 independent electrical loads via the ABB i-bus® KNX. The device features a manual operation and displaying of the switching state of the outputs. The 6 A device is especially suited to switch resistive, inductive or capacitive loads. The device is powered by KNX and requires no additional power supply.

  • Installation
    • Mounting Type: DIN-Rail
  • Environmental
    • Ambient Air Temperature: Operation -5 ... +45 °C
    • Degree of Protection: IP20
  • Technical
    • Contact Position Indication: ON / OFF
    • Number of Outputs: 12
    • Number of LEDs: 1
    • Maximum Number of Switching Outputs: 12
    • Compatible Bus Systems: KNX (TP)
    • Product Range: KNX
    • Manual Operation: Yes
    • Suitable for C-Load: No
    • Number of Batteries: 0
  • Electrical
    • Voltage Range: 230 V AC
    • Auxiliary Voltage AC/DC: KNX
    • Output Voltage (Uout): 230 V AC
    • Rated Current (In): 6 A
    • Maximum Switching Current: 6 A
    • Maximum Switching Power: 1380 W
    • Load Type: AC1
    • Power Loss: 3.9 W
  • Design
    • Colour: light grey
  • Dimensions
    • Width in Number of Modular Spacings: 12.0
    • Product Net Width: 210 mm
    • Product Net Height: 90 mm
    • Product Net Depth / Length: 63.5 mm
    • Product Net Weight: 0.608 kg
    • Built-In Depth (t2): 64.5 mm
