ABB 10" SURFACE-MT FRAME BK/RG ST/U10.4.1-825

Product Code: AB-STU10.4.1825

Brand
ABB
RRP: POA


Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands ABB
Series KNX Touchpanels
  • Details
  • Downloads
  • Where to Buy
  • Ordering

ST/U10.4.1-825

General Information

  • Extended Product Type: ST/U10.4.1-825
  • Product ID: 2TMA310051B0004
  • EAN: 6955891819504

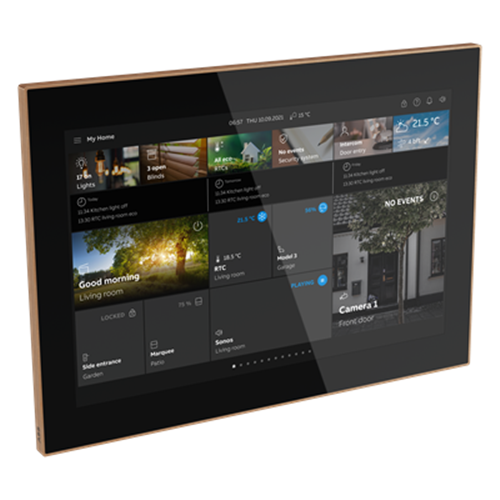

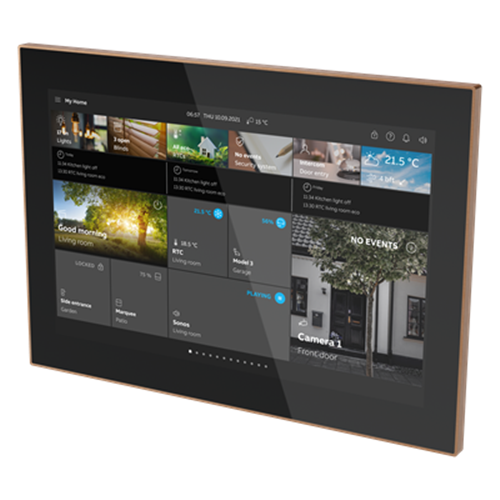

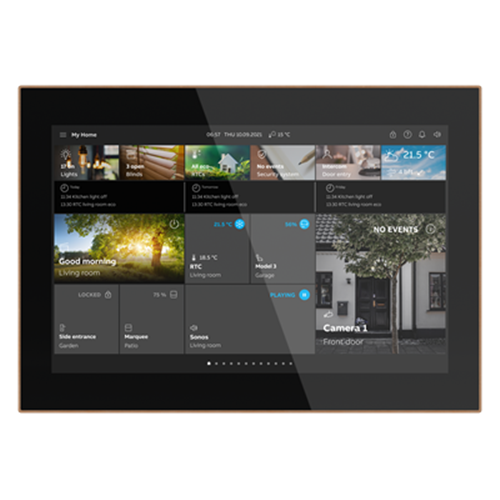

  • Catalog Description: Touch panel, glass black / rosegold
  • Long Description:
    Freely programmable Touch panel featuring a 10-inch IPS screen with 1280*800 resolution that combines smart home automation and door communication in one device for residential applications, hotels, and commercial buildings. SmartTouch 10 offers home control and monitoring of the free@home, or KNX system and the fully integrated functions of ABB Welcome®.
    Control, observe and manage your entire installation on one device: Switching - Dimming - Slider - Blind - RGBW control element - Step switch - Scene switch - Display element - Audio control element. With scene function, logic functions, presence simulation and time programs. SmartTouch® 10” can also be used as an end device for communication with the ABB-Welcome outdoor stations, and as part of the ABB-Welcome door communication system.

Functions

KNX:

  • A total of 450 control elements are displayed on a maximum of 25 pages.
  • 80 fault and alarm messages
  • 30 logic functions
  • 40 timers
  • presence simulation for 20 participants
  • 10 scene actuators
  • 3 object RTC
  • Equipped with a hearing loop for coupling the audio signal into hearing aids
  • Page display with a maximum of 18 touch surfaces on one page

free@home:

  • Twisted pair connection provides a single page with a maximum of 18 controls.
  • Alternatively, for additional control, connection via wi-fi delivers the same amount of control and features as the free@home App.

Welcome:

  • Integrated IP Gateway
  • Possibility to integrate ONVIF IP cameras
  • External power supply: 20-32 VDC (SELV) or via the ABB-Welcome system controller (Consumer units: 14).
  • Display size: 25,4cm (10”): Display resolution: 1280*800 : Display screen: IPS display
  • Dimensions (L x W x D): (180.2mm x 254.6mm x 17.5mm)
  • Flush or wall mounted, mount for desktop installation
  • The flat design slim real metal frame sits almost flush with the wall (14mm) and is available in 4 colours (stainless steel, anthracite, gold and rose gold) and black or white glass.
  • Installation
    • Mounting Type:
      • Flush Mounted
      • Surface Mounted
    • Mounting Position: horizontal
    • Mounting Height: Optimum 1.5 m
  • Environmental
    • Ambient Air Temperature: Operation 0 ... +45 °C
    • Degree of Protection: IP20
  • Technical
    • Compatible Bus Systems:
      • KNX (TP)
      • Welcome
      • free@home (TP)
    • Product Range:
      • free@home
      • KNX
      • Welcome
    • Display Type: TFT Touch Display
    • Manual Operation: Yes
  • Electrical
    • Rated Voltage (Ur): 20 ... 32 V
    • Auxiliary Voltage AC/DC: 24 V DC
    • Rated Current (In): 0.5 A
  • Design
    • Housing Material: Stainless steel
    • Material:
      • Thermoplastic
      • Glass
      • Stainless steel
    • Colour: glass black / rosegold
  • Dimensions
    • Product Net Width: 254.6 mm
    • Product Net Height: 180.2 mm
    • Product Net Depth / Length: 17.5 mm
    • Product Net Weight: 953 g
    • Screen Size: 10 in
