6W 130mm AS7240 Ceiling speaker - Amber Tech
Products

Speakers

6W 130mm AS7240 Ceiling speaker

Product Code: AS-SPCF-06W-50-A

Brand
ASL
RRP $89.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ASL
Size 5"
Speaker Type In-ceiling

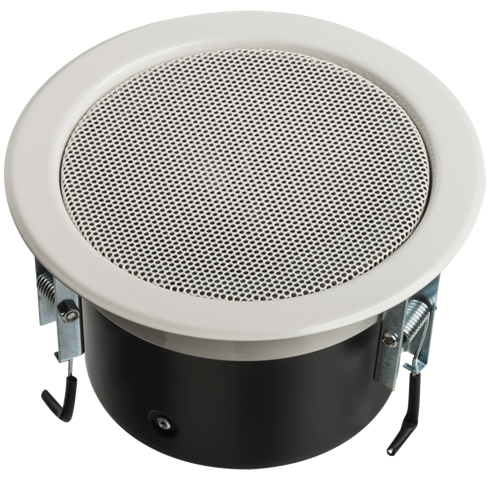

SPCF-06W-50 Flush Mount Ceiling Loudspeaker


The SPCF-06W-50-EN54 is a 6W 100V flush mount ceiling loudspeaker, which has a 5” (130mm) full-range chassis providing excellent sound quality with speech and background music, and which is certified to EN54-24. The speaker is fitted with a 100V transformer which has three power adjustment tappings of 6W, 3W, and 1.5W.

The SPCF-06W-50-EN54 has a powder coated metal chassis and grille, with the high quality finish giving good long-term protection and resistance to corrosion. The speaker is supplied with a rear fire dome, and its enclosure is ingress protection rated to IP55C. As standard the speaker is coloured to match RAL9010 ‘Pure White’, however the speakers can be supplied in any four-digit RAL or NCS colour, as a special order.

Quick and easy ceiling mounting is provided through the use of spring clamps, with a possible ceiling thickness of between 2mm and 45mm, and an inner ring attachment prevents the grille from falling. The 100V loudspeaker line cabling is connected by means of a two-pin ceramic block, with rubber grommets being provided for the connections. or additional reliability, a thermal fuse is provided and the speaker chassis is damp-resistant.

  • Power Tappings: 6 / 3 / 1.5 W
  • Frequency Range: 90 - 15,000 Hz
  • 6W 100V LOUDSPEAKER
  • SIZE 5” (130MM)
  • QUICK MOUNT
  • SHOCK-RESISTANT HOUSING
  • INGRESS PROTECTION IP55C
  • HIGH EFFICIENCY
  • EXCELLENT SOUND QUALITY
  • FULLY CERTIFIED TO EN54-24
