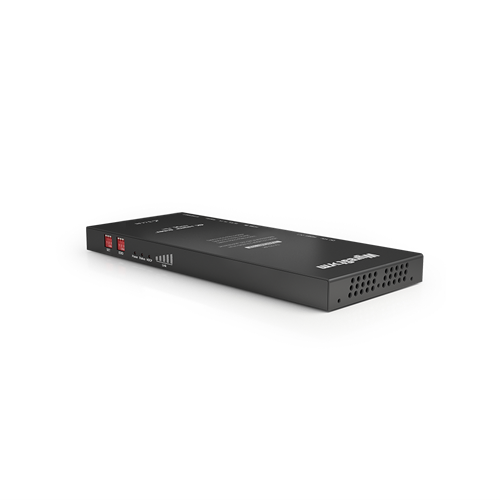

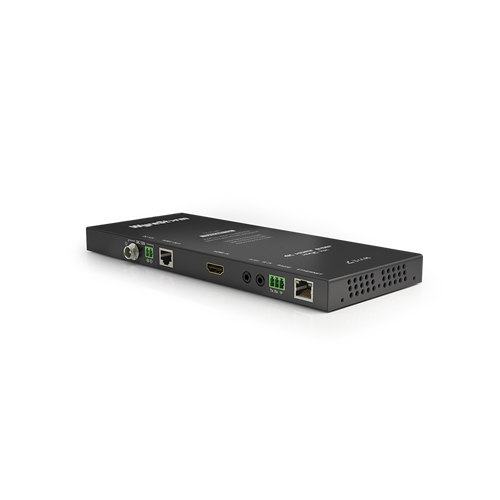

4K Hdcp2.2 Hdbaset Tx With Poh TX704K Wyrestorm

Product Code: WY-TX704K

Brand
Wyrestorm
RRP $909.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Input/output type HDBaseT
Product type Extenders
  • Details
  • Downloads
  • Where to Buy
  • Ordering

HDBaseT™ 4K UHD Transmitter (4K: 70m/230ft | 1080p: 100m/328ft)

TX-70-4K
For flagship HDBaseT Transmission performance, look no further than the TX-70-4K. Class A HDBaseT transmission means support for 4K UHD content; even HDR-10 @24Hz, up to 70m/230ft. 2-way PoH and EDID management completes this fully-loaded specification.

CLASS A HDBASET™ TRANSMISSION
Sends HDMI signals of 4K UHD with HDR up to 70m/230ft and 1080p up to 100m/328ft with multi-channel audio, control, ethernet and PoH.

2-WAY POH
The TX-70-4K can either be powered by a PoH-compatible matrix or presentation switcher, or can itself deliver power to a receiver device such as the WyreStorm HDBaseT RX-70-4K or in cases where audio de-embed is required, the RX-70-4K-ARC.

CONTROL OPTIONS
Supports 2 methods of control pass-through. The TX-70-4K can handle both bi-directional IR and RS-232 when used as part of a compatible WyreStorm matrix or extender system.

ON-BOARD EDID MANAGEMENT
Offering 2 methods of EDID communication, the TX-70-4K is as capable with invisible communication as it is with the 4K video that you can see. An installer can select EDID passthrough from the connected screen/projector, or decide to use one of the embedded options for maximum flexibility.


  • Low profile chassis of 18mm/0.7” for easier, more convenient installations in tight spaces
  • Transmits discrete wide-band bidirectional IR control signal/routed serial commands (from compatible matrix) together within the HDMI signal over a single Cat5e/6
  • Robust Class A HDBaseT transmission technology for stable 4K/HD distribution and control resistant to electrostatic and environmental interference compared to conventional UTP transmission
  • Distribution of video (4K & 1080p), multichannel audio, bidirectional IR, POH power and 10/100 Ethernet over single Cat5e/6
  • Multichannel audio supports 7.1 DTS Master HD and Dolby True HD
  • HDMI v2.0 with HDCP 2.2
  • Full 3D compatibility up to 1080p
  • Switchable RS-232 selection for firmware update
  • Power options – additional phoenix port and threaded DC for use of both standard and locking DC power plugs
  • Visual LED indication for power supply, signal status to show display connection, HDCP in signal and Link between HDBaseT devices
  • Automatically adjusts feedback, equalization and amplification of signal
  • Energy efficient universal power supplies included
  • Mounting brackets and IR connections included

SPECIFICATIONS

Audio and Video
  • Inputs: 1x HDMI In: 19-pin HDMI type A female
  • Outputs: 1x HDBaseT™ Out 8-pin RJ-45 female
  • Output Video Encoding: HDBaseT™ Class A
  • Audio Formats: 2ch PCM | Up to DTS-X and Dolby Atmos
  • Video Resolutions (Max)
    • HDMI
      • 1920x1080p @60Hz 12bit (15m/50ft) | 16bit (7m/23ft)
      • 3840x2160p @30Hz 4:4:4 8bit (7m/23ft) | @24Hz 4:2:0 HDR 10bit (3m/9.8ft)
      • 4096x2160p @60Hz 8bit 4:2:0/4:4:4 (7m/23ft)
    • Using Cat6
      • 1920x1080p @60Hz 12bit (100m/328ft) | 16bit (70m/230ft)
      • 3840x2160p @30Hz 4:4:4 8bit (70m/230ft) | @24Hz 4:2:0 HDR 10bit (70m/230ft)
      • 4096x2160p @60Hz 4:2:0 8bit (70m/230ft)
    • Using Cat6a/7
      • 1920x1080p @60Hz 12bit (100m/328ft) | 16bit (100m/328ft)
      • 3840x2160p @30Hz 4:4:4 8bit (100m/328ft) | @24Hz 4:2:0 HDR 10bit (100m/328ft))
      • 4096x2160p @60Hz 4:2:0 2bit (100m/230ft)
  • Color Depth (Max): 1080p: 12bit |
  • Maximum Pixel Clock: 297mHz
Communication and Control
  • HDMI: HDMI | HDCP 2.2 | EDID | DVI/D supported with adapter (not included)
  • HDBaseT: HDMI | HDCP 2.2 | EDID | 2-way PoH | Bidirectional IR, RS-232, and Ethernet
  • Ethernet:
    • 1x 8-pin RJ-45 female | 10/100 Mbps auto-negotiating | Bidirectional over HDBaseT™
    • IR 1x IR TX 3.5mm (1/8in) TS Mono | Bidirectional over HDBaseT™
    • 1x IR RX 3.5mm (1/8in) TRS Stereo | Bidirectional over HDBaseT™
  • RS-232: 1x 3-pin Phoenix Connector | Bidirectional over HDBaseT
Power
  • Power Supply: Input: 100~240V AC 50/60Hz | Output: 12V DC 2A
  • PoH: 48V 15.4W
  • Max Power Consumption: 26.5W
Environmental
  • Operating Temperature:
    • 32°F ~ 113°F (0°C ~ 45°C)
    • 10% ~ 90%, non-condensing
  • Storage Temperature
    • -4°F to ~ 158°F (-20°C ~ +70°C)
    • 10% ~ 90%, non-condensing
  • Maximum BTU: 90.42 BTU/hr
Dimensions & Weight
  • Rack Units/Wall Box: <1U
  • Height: 24.9mm/0.99in
  • Width: 220mm/8.67in
  • Depth: 89.9mm/3.54in
  • Weight: 0.52kg/1.14lbs
Regulatory
  • Safety and Emission: CE | FCC | RoHS
  • Accessories:
    • 1x TX-70-4K Transmitter
    • 1x 2-pin Phoenix Connectors
    • 1x 3-pin Phoenix Connectors
    • 1x Wide-band IR Emitters
    • 1x Wide-band IR Receivers (30-50KHz)
    • 2x Mounting Brackets (1pr for TX and 1pr for RX)
    • 1x Quickstart Guide
