320 Series 24 Port POE Switch AN-320-SW-F-24-POE Araknis

Product Code: AR-AN-320SW-F24P

Brand
Araknis
$3,519.00 inc GST
RRP $3,519.00

Out of Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands Araknis
Product type Network switches
  • Details
  • Downloads
  • Where to Buy
  • Ordering

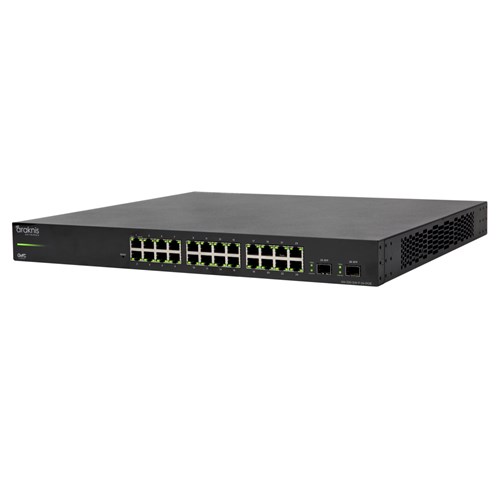

Araknis Networks® 320 Series L2 Managed Gigabit Switch with Full PoE+ and Front Ports

From surveillance cameras to wireless access points, this managed PoE solution makes integration on the network easier than ever. This series of switches supports full PoE and PoE+, as well as a robust power budget for any job. 1Gbps speed across all ports allows for powerful connectivity, while a user-friendly GUI and multiple mounting options ensure a quick and easy install. As with all Araknis switches, you have remote management capability via OvrC®. See how the 24-port, 16-port, and 8-port models compare to the competition.

  • Fully Managed
  • Gigabit
  • Full Poe+
  • Multi-Mounting
  • Metal Housing
  • OvrC Enabled
  • Control4 Driver
  • Dual SFP Uplinks
  • Multi-Speed Fans

Even More OvrC Capability
With a new design and greater enhanced memory than found in previous generations, the Araknis 320 switch offers additional control via OvrC. With enhanced memory, the switch will automatically identify what device is connected to which port – and is future-ready for additional OvrC functionality as it develops!


Fully Managed
“Fully managed” means full control of the network. This switch provides a full Layer 2 managed solution with functionality to handle the most complex and robust installs.


1Gbps
With a powerful 1Gbps on all ports simultaneously, this switch can support the backbone of an install or simply act as a desktop add.


Full POE+
Got a power-hungry install? No worries! This switch has POE-capable ports: up to 30W on each port, and up to 15W on all ports simultaneously, giving you a robust power budget to handle practically any job.


Improved GUI
A clear, concise GUI with simple VLAN and Link Aggregation setup makes install work a breeze. The improved GUI provides more information, performance data, and insight into switch performance including data transfer and power draw.


Dual SFP Uplinks
Use this switch’s SFP ports to provide RJ45 uplinks to other devices, and/or fiber uplinks to extend the network over long distances while getting a stronger signal. Featuring a dedicated fabric, they don’t share a backplane with any other ports on the switch, which means you get a full 1Gbps and don’t have to sacrifice a dedicated PoE port to use them (no combo ports here!)


Multi-Speed Fans
Now it’s easier than ever to handle the heat. A smarter design features a honeycomb venting solution and temperature sensor that drives the speed of the fans, allowing for efficient and discreet temperature control.


Ryft® LED & Mechanical Design
Stop spending time on network configuration. Simply plug this switch in, and you’re ready to go. It’s as easy as that.

Multi-Mounting
Mounting has never been easier. With its 1U design and available accessories, it easily mounts in a rack, on a wall, or anywhere in between. Included rack ears make for a sleek, left-justified design, while optional center-mount rack ears offer a more traditional look. (To order center-justified rack ears, visit the corresponding product page.)

Specifications

  • Rack Spacing: 1U
  • RJ-45 1000BASE-T Ports: 24
  • SFP Uplink 1000BASE-X Ports: 2
  • POE Ports: 24
  • Flash Memory: 16MB
  • SDRAM Memory: 128MB
  • Packet Buffer:  512KB
  • MAC Table Size: 8K
  • Switching Capacity: 52Gbps
  • Forwarding Rate: 38.7Mpps
  • PoE Features:
    • 802.3af/at Compliant
    • Max. Simulataneous Power per Port: 15W
    • PD Classification
  • PoE Max Power Output (each port): 30W
  • PoE Power Budget:375W
  • Power Features:
    • Enabled/Disable per Port
    • Priority Setting per Port
    • Overloading Protection per Port
    • Power Level Setting per Port
  • Flow Control: 802.3x, Back Pressure
  • Spanning Tree:
    • 802.1D (STP)
    • 802.1w (RSTP)
    • 802.1s (MSTP)
  • VLAN Features:
    • 802.1Q
    • VLAN Group
    • Port-based VLANs
    • Private VLANs
    • Voice VLAN
  • Link Aggregation Features:
    • Static, 802.3ad LACP
    • Max. Ports Per Group: 8
    • Max Group: 8
  • Multicast Features:
    • IGMP Snooping v1/v2/v3
    • MLD Snooping v1/v2
    • IGMP Querier
    • IGMP Immediate Leave
  • Jumbo Frame Support: 9K
  • Storm Control: Broadcast/UnKnown Multi-cast/Unknown Unicast
  • L2 Features:
    • HOL Blocking
    • Forwarding Mode: Store-and-forward
    • Energy Efficient Ethernet: IEEE 802.3az
    • LLDP (IEEE802.1ab)
  • QoS Features:
    • Priority Queues: 8 queues/port
    • Rate Limiting Ingress: 1 Kbps/1 pps
    • Rate Limiting Egress: 1 Kbps/1 pps
    • DiffServ(RFC2474)
    • Scheduling: WRR
    • CoS: 802.1p, IP ToS Precedence, IP DSCP
  • Security Features:
    • Port Security (MAC-based)
    • 802.1x PNAC (Port-based)
    • ACL: L2, L3, L4
    • IP Source Guard
    • RADIUS
    • HTTPS and SSL
    • SSH v2.0
    • MAC Filter
  • Management Features:
    • CLI, WEB, Telnet
    • Dual FW Images
    • FW Upgrade: TFTP, HTTP
    • Management Access Filtering: SNMP/Web/Telnet
    • RMON: 1, 2, 3, 9 groups
    • Port Mirroring: One to One, Many to One
    • Remote Ping
    • Cable Diagnostics
    • UPnP
  • DHCP: Client
  • Event Log: local flash, remote server
  • SNMP: v1, 2c, v3
  • Dimensions (W x H x D): 17.32" x 1.73" x 16.14"
  • Line Voltage: 100-240V AC, 50/60 Hz
  • Power Consumption:
    • Max: 441.05W
    • Device: 26.65W
    • BTU/h (max): 129.23
  • Operating Temperature: 32-122°F
  • Operating Humidity: 10-90%
  • Weight: 6.41 lb
  • Fan Noise:
    • 32.5 dBA (< 24°C @ 25%)
    • 37.7 dBA (25-29°C @ 50%)
    • 44.6 dBA (30-34°C @ 75%)
    • 44.2 dBA (≥ 35°C @ 100%)
