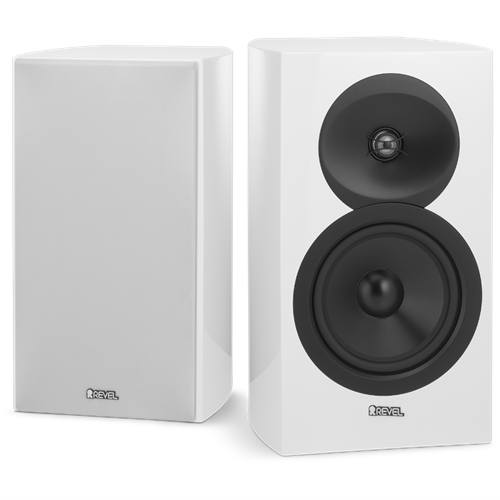

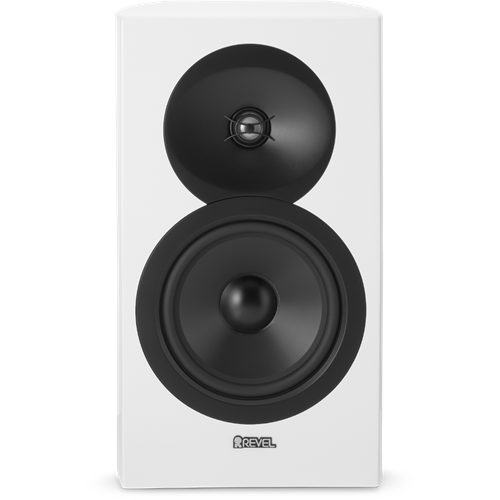

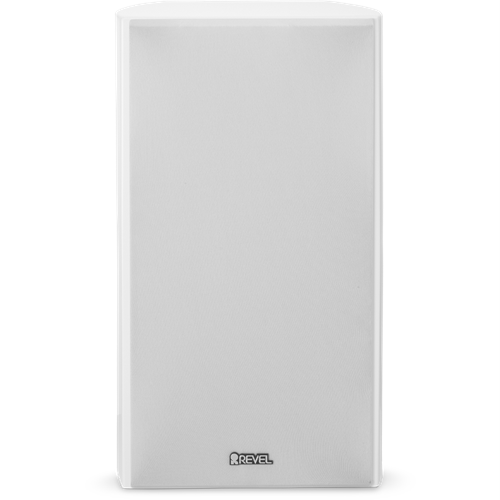

REVEL Concerta M16 White Gloss Bookshelf Speaker RVM16WH (2CTN = PAIR)

Product Code: RE-CONM16WHT

Brand
Revel
RRP $1,899.00


Quantity In Cart: 0
Unit of Measure
PAIR



Technical Specifications
Brands Revel
Series Concerta2
Size 6.5"
Speaker Type Bookshelf

M16
2-way 6.5" Bookshelf Loudspeaker

The M16 is a true full range 2-way 6.5” bookshelf that features a small footprint and elegant design. It will deliver an impressive combination of wide frequency range, uncompressed dynamic range and low distortion across the entire audible spectrum.

M16 Highlights

  • Derived from Revel’s award-winning Performa3 Series Loudspeakers
  • 6.5"deep anodized aluminum cone woofers
  • 1" Aluminum Tweeter
  • Fourth generation Acoustic Lens waveguides
  • Computer optimized driver positioning and network integration
  • Constant Pressure Gradient Port Design
  • No visible fasteners on the front, top or side panels
  • Magnetic grilles with brushed metallic logos

High frequency response is supported by 1 inch aluminum dome tweeters that were derived from Revel’s Performa3 series. Low/Mid range frequency response is supported by 6.5” Aluminum cone woofers featuring low-distortion motor-structures for greater clarity and accuracy with improved sensitivity and output capability.

The patented wave guide design improves tweeter to woofer blend and significantly improves off-axis response for consistent performance over a wide listening area. In doing this we sacrificed no details by making sure no fasteners were visible allowing the speaker to show enhancing smooth lines of the cabinet and magnetically attached grilles. To finish the enclosure, we selected high gloss black and white finishes to highlight the features of this beautiful speaker.


General Specifications

  • Crossover Frequencies    2.1kHz

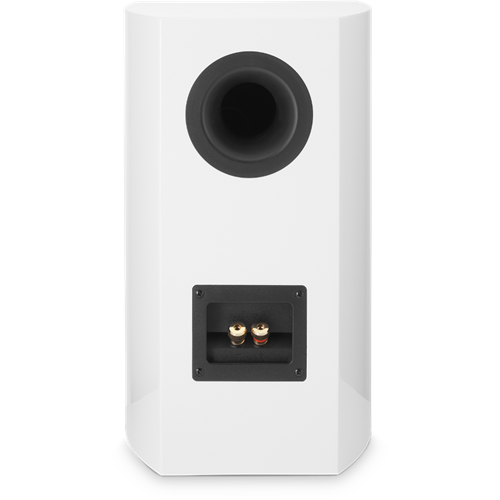

  • Enclosure Type    Bass-Reflex via Rear-Firing Port
  • High-frequency Driver Components    1" Aluminum Tweeter with Acoustic Lens Waveguide
  • Nominal Impedance    6 Ohms
  • Input Connections    Five-way binding posts
  • Low Frequency Extension    55Hz, 50Hz, 45Hz (-3 dB, -6 dB, -10 dB)
  • Low-frequency Driver Components    6.5" Aluminum Cone Woofer
  • Recommended Amplifier Power    50-120W
  • Sensitivity    86dB (2.83V @ 1M)
  • Dimensions    14.75" x 8.6"x 10.76" (37cm x 22cm x 27cm)—Including Feet
  • Weight    16 lbs
