This is a Special Order Item

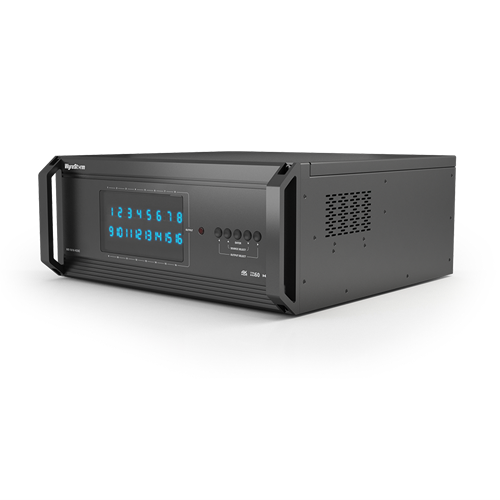

16X Hdbt Matrix Custom Chassis MX1616H2XC Wyrestorm

Product Code: WY-MX1616H2XC

Brand
Wyrestorm
RRP $13,589.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands WyreStorm
Input/output type HDMI
Product type AV matrixes

16 Slot 18Gbps 4K HDR Modular Matrix Switch Chassis

MX-1616-H2XC
Because the H2X platform packs such a big punch with its standalone version, it wouldn’t be sensible to not offer a modular version. Much like the 2K 16x16 modular matrix, WyreStorm takes custom AV distribution and control to new heights with the H2XC platform.

The H2XC platform gives integrators the utmost in switching and flexibility; for large projects that demand the latest in 4K HDR technology, while giving the integrator the freedom to choose exactly what goes into its chassis, making a perfect fit for the install. Fully utilizing the matrix, not your wallet.

16-SLOT UHD-READY MATRIX
This 16x16 custom matrix chassis is built to your custom specification from a range of TX-H2X transmission cards, allowing hundreds of variations at your disposal.

18GBPS OVER COPPER CABLE
The optional TX-H2X-VLC transmission card now allows the powerful ability to pass the full bandwidth required of HDMI 2.0 over long distances via HDBaseT™ by utilizing Variable Compression technology over a single Cat6 and higher cable.

UP TO 48 AUDIO SOURCE INPUTS
The integrated digital audio matrix can manage up to 48 multi-channel sources, which is made up of audio from the connected HDMI or remote HDBaseT™ sources, separate audio-only devices via S/PDIF and multi-channel ARC from HDBaseT™ zones.

THE CENTER OF YOUR INFRASTRUCTURE
The optional TX-H2X-HDBT input card allows source devices to be de-centralized and sent remotely back to the head-end. A large switching eco-system can be created using WyreStorm's huge range of HDBaseT™ transmission devices.



  • Populate with personal selection of multi-format transmission card options including:
    • HDBaseT™ output supporting 4K/60 4:4:4 or 12-bit HDR to 70m/230ft and 1080p to 140m/459ft
    • Fiber output supporting 4K/60 4:4:4 or 12-bit HDR to 300m/984ft
  • 16-slot 4K UHD matrix switcher featuring 16 inputs and 16 switchable zone outputs with integrated audio matrixing
  • Modular platform with 4 modular card options including HDBaseT input and OM3 fiber transmission
  • 18Gb/s backplane for support of HDMI2.0 video standard
  • Supports HDR-10 HLG and Dolby Vision™ HDR content
  • Integrated audio matrix supports up to 48 audio inputs: HDMI de-embed, S/PDIF in and Audio Return
  • Audio DSP allows adjustment of volume, EQ and delay for every audio zone
  • Audio zone can follow video output or be run independently for full audio matrix flexibility
  • AVR Priority mode for all HDMI and HDBaseT outputs – dynamically manages requirement for multi-channel audio when it’s needed
  • API generated control of displays via RS-232 or CEC
  • CEC power triggering for all HDMI and HDBaseT outputs
  • Source restriction of any source to any zone
  • Built-in diagnostic to monitor system and transmission performance
  • Delivers PoH to every HDBaseT zone, powering receivers
  • Accessory devices to build large system infrastructures
  • QuickSync™ technology for near instant switching
  • SmartEDID™ feature dynamically solves mixed resolution conflicts when combining 2K/4K screens in the same installation

SPECIFICATIONS

Audio and Video
  • Inputs:
    • Up to 16x HDMI In: 19-pin type A
    • Up to 16x HDBaseT™ In 8-pin RJ-45 female
    • Up to 16x S/PDIF In Coaxial Digital
  • Outputs:
    • Up to 16x HDBaseT Out 8-pin RJ-45 female
    • Up to 16x HDMI Out 19-pin type A (Mirrors HDBaseT™)
    • Up to 16x Optical Out: SFP+
    • Up to 16x S/PDIF Out Coaxial Digital
    • Up to 16x Audio Out 3pin Phoenix Connector
  • Output VIdeo Encoding: HDBaseT™ Class A 5-Play
  • Encoding Data Rate: 9.2Bbps
  • End to End Latency: 10µs (micro seconds)
  • Audio Formats:
    • S/PDIF: 2ch PCM | Multichannel: Up to 5.1 DTS and Dolby Digital
    • HDMI: 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos
  • Video Resolutions (Max) Video Resolutions
  • Video Resolutions (Max)Video ResolutionsHDMICat6Cat6a/7OM3
    1920x1080p @60Hz 12bit15m/49ft100m/328ft100m/328ft300m/984ft
    1920x1200p @60Hz 16bit7m/23ft100m/328ft100m/328ft300m/984ft
    3840x2160p @24Hz 10bit 4:2:0 HDR3m/10ft70m/230ft100m/328ft300m/984ft
    3840x2160p @30Hz 8bit 4:4:47m/23ft70m/230ft100m/328ft300m/984ft
    3840x2160p @24Hz 10/12bit HDR 4:2:03m/10ft70m/230ft100m/328ft300m/984ft
    4096x2160p @60Hz 8bit 4:2:07m/23ft70m/230ft100m/328ft300m/984ft
    4096x2160p @60Hz 8bit 4:4:47m/23ft70m/230ft100m/328ft300m/984ft
    Long Cable Mode Forced Resolution: 1920x1080p @60Hz 12bitNA140m/460ft140m/460ftNA
  • Supported Standards: DCI | RGB | HDR | HDR10 | Dolby Vision | HLG | BT.2020 | BT.2100
  • Maximum Pixel Clock: HDMI: 600mHz | HDBaseT™: 297MHz
Communication and Control
  • HDMI: HDMI | HDCP 2.2 | EDID | DVI/D supported with adapter (not included)
  • HDBaseT™: HDMI | HDCP 2.2 | EDID | ARC | 1-way PoH to Receiver | Bidirectional IR and Ethernet
  • Ethernet: 1x 8-pin RJ-45 female | Web UI | IP Control | Bidirectional over HDBaseT™
  • IR:
    • 1x IR Ext - 3.5mm (1/8in) TRS Stereo | Matrix Control
    • 10x IR RX - 3.5mm (1/8in) TRS Stereo | 10x IR TX - 3.5mm (1/8in) TS Mono
    • Transmits to Over HDBaseT™
  • RS-232: Bidirectional over HDBaseT | Matrix Control | Firmware Updates
  • Audio Return Channel (ARC): Returns audio from displays built-in applications via ARC HDMI Input over HDBaseT™
Power
  • Power Supply: 100~240V AC 50/60Hz
  • PoH: 48V | Each HDBT Outputs: 15.4W | All Outputs: 95W
  • Max Power Consumption:
    • Default Configuration: 200W
    • Note: Power Consumption increases by +11W for each optional TX-H2X-HDBT card installed.
    • Max of 6 TX-H2X-HDBT cards can be used within a single matrix when using PoH.
Environmental
  • Operating Temperature: 32°F ~ 113°F (0°C ~ 45°C) | 10% ~ 90%, non-condensing
  • Storage Temperature: -4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90%, non-condensing
  • Maximum BTU: 682 BTU/hr
Dimensions & Weight
  • Rack Units | Wall Box: 4U
  • Height With | Without Feet: 183.1mm/7.22in | 176mm/6.93in
  • Width With | Without Brackets: 483mm/19.02in | 440mm/17.33in
  • Depth With | Without Handles: 420.7mm/16.57in | 382.7mm/15.07in
  • Weight: 15.6kg/34.32lbs
Regulatory
  • Safety and Emission CE | FCC | RoHS
