16 Mic/Line in, 8 Line Out, 4 AES I - Amber Tech
Products

Solid State Logic

This is a Special Order Item

16 Mic/Line in, 8 Line Out, 4 AES IO Dante IO Box

Product Code: SS-SB16.12

Brand
Solid State Logic
RRP P.O.A.


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands Solid State Logic

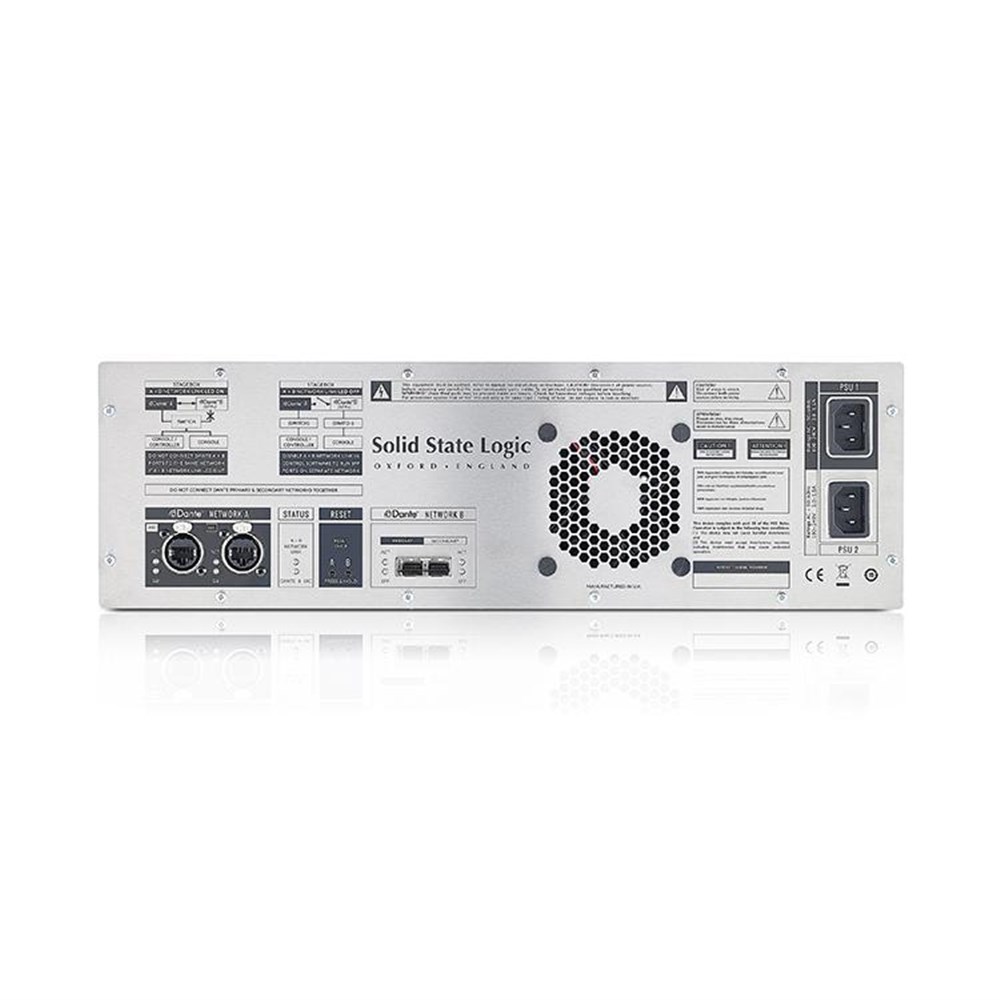

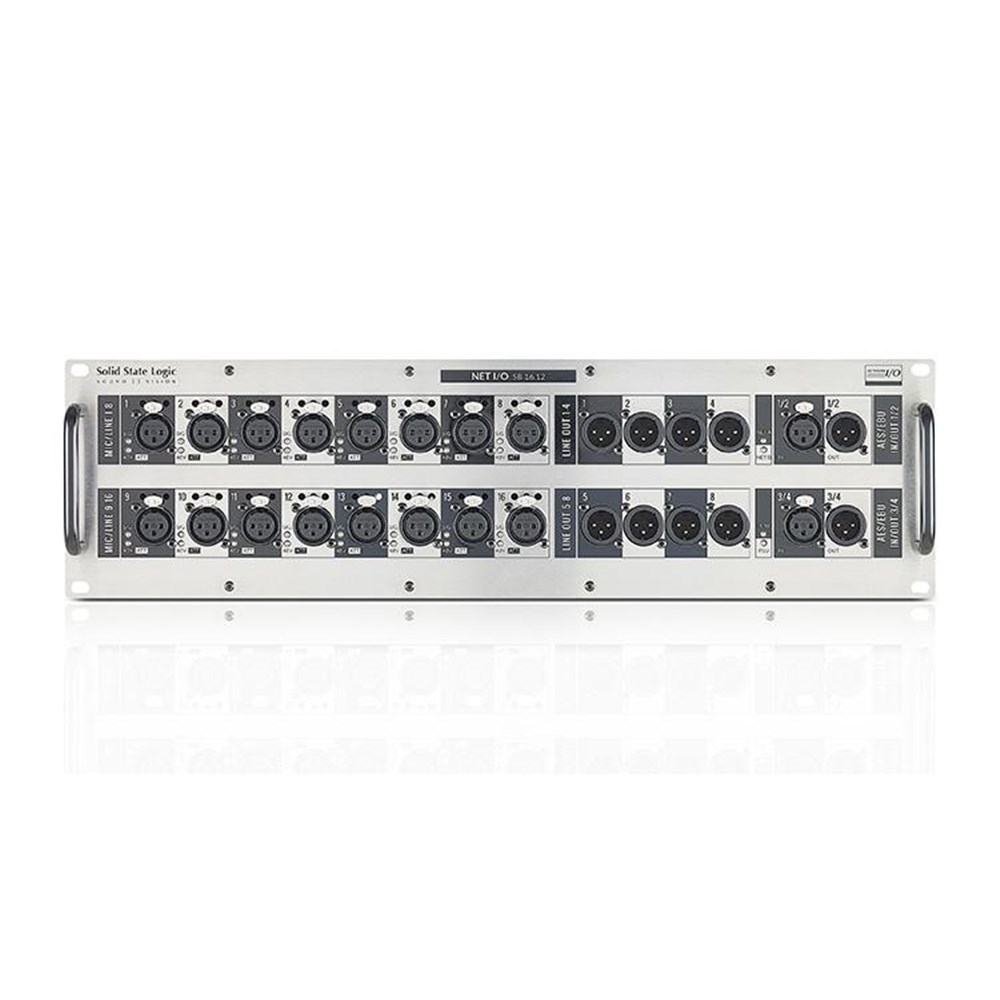

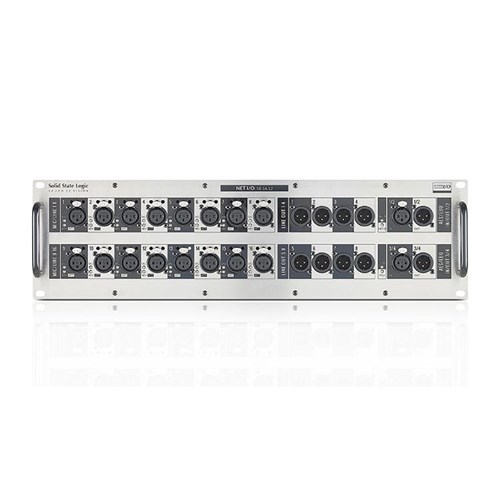

SB 16.12 is a 3U ruggedised enclosure featuring dual redundant power supplies, 16 mic/line inputs, 8 analogue line outputs and 4 digital inputs and outputs on 2 AES3 input/output pairs. It has a pair of redundant RJ45 Dante network connections in addition to a user configurable SFP port that can be fitted with RJ45 or optical connectors. These can be used for network extension or to provide network separation for the gain-compensated Dante “split”, for connection to a second Dante-equipped console or appropriately equipped device on a different network. It has individual signal present, clip and phantom power LED’s as well as global indication of PSU, Network A and B and Hardware status. SB 16.12 can operate at 96kHz or 48kHz sample rates.
