10.1" All-in-one Touchpad IP controller PoE+ table top and wall mount

Product Code: WY-SYNTOUCH10

Brand
Wyrestorm
RRP $2,149.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Accessory Type Controller
Series Synergy
  • Details
  • Downloads
  • Where to Buy
  • Ordering

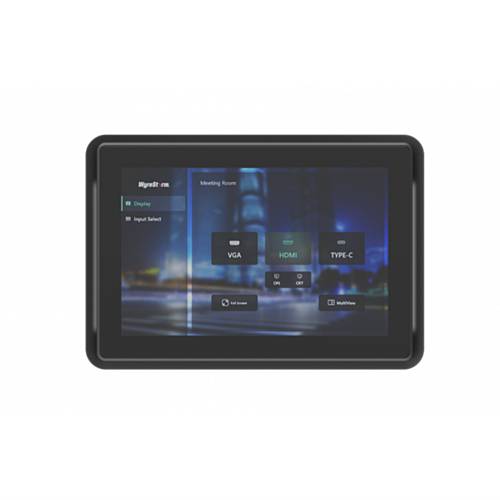

Synergy™ 10.1” All-In-One Touchpad Controller

The SYN-TOUCH10 is a powerful LAN-based touchpad controller, compatible with WyreStorm solutions and many other third-party LAN controllable devices. The SYN-TOUCH10 is a perfect solution for corporate and education environments by providing a comprehensive control experience for an entire room. The possibilities are endless with a fully programmable and customizable software environment that takes the hassle and frustration out of a typical control system experience. Two-way communication between devices allows for a responsive experience such as knowing which input is selected or if a microphone has been muted.

TOTAL SOLUTION
The SYN-TOUCH10 provides a comprehensive solution for today’s demanding corporate and education applications. Control all aspects of a room ranging from input switching, display power, lighting, shades/blinds, and even create macros which can trigger different scenes in one press.

INTUITIVE SETUP
The software environment is modern and user-friendly. No advanced programming knowledge is required to create cutting-edge control interfaces. Pre-built templates are available for WyreStorm devices making it quick and easy to get up and running with little effort.

CUSTOM INTERFACE
The Synergy software provides a fully customizable user interface allowing you to tailor it to your exact needs. This includes custom button layouts and icons, colors, background images, logos, branding and more!

MOUNTING VERSATILITY

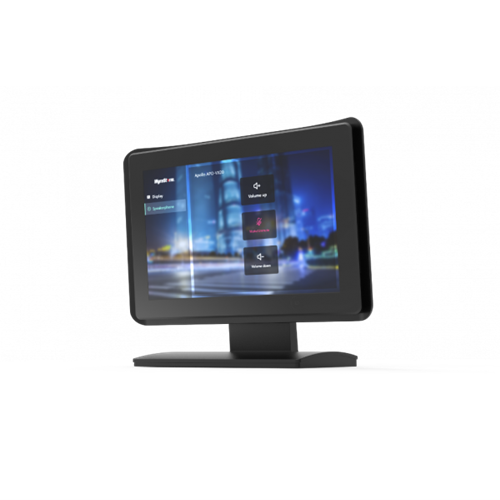

The touchpad comes with an adjustable table stand and a wall mount that fits both US and UK/EU back boxes. Whether you want to place the touchpad on a conference room table, or mount it on the wall near a doorway, we’ve got you covered.

Technical Specifications

SYSTEM

  • Operating System
    • Android 8.1

DISPLAY

  • Panel
    • 10.1″ LCD panel
  • Resolution
    • 1280×800
  • Touchscreen
    • 10-point capacitive touch
  • Viewing Angle
    • 85°
  • Contrast Ratio
    • 800:1
  • Luminance
    • 250 nits
  • Aspect Ratio
    • 16:10

INTERFACE

  • Ethernet
    • 1GbE | 802.3at PoE+
  • Card Slot
    • MicroSD for transferring system configuration
  • USB
    • 2.0 Type-A for transferring system configuration
  • Micro USB
    • Reserved
  • Headphone Jack
    • Reserved

POWER & ENVRONMENTAL

  • Power
    • 12V 1.5A DC | 802.3at PoE+
  • Mounting
    • VESA 75x75mm
  • Dimensions
    • 274mm x 190mm x 30mm (10.8″ x 7.5″ x 1.2″)
    • Height with table stand: 235mm (9.25″)
  • Weight
    • 0.7kg/1.5lbs

In the Box

  • 1x SYN-TOUCH10 Touchpad
  • 1x Table Top Stand
  • 1x Wall Mount (US/UK)
  • 1x DC 12V Power Adapter (US/UK/EU/AU)
  • 4x Table Stand Screws
  • 4x Wall Mount Screws
  • 1x M3L8 Hexagonal Screw
  • 1x M3L8 Phillips Head Screw
