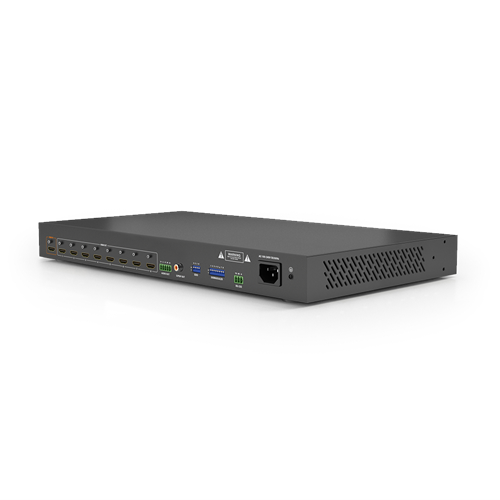

1 in 8 out HDMI splitter 4K HDR with output scaling Audio De-embed EDID management

Product Code: WY-SP618

Brand
Wyrestorm
RRP $749.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands WyreStorm
Input/output type HDMI
Product type Splitters

4K60 1:8 Scaling HDMI Splitter


SKU: SP-618

The SP-618 is a simple yet powerful HDMI splitter that can be used in many applications from digital signage to retail or hospitality. Each HDMI output of the SP-618 features a 4K to 1080p down scaler, allowing for mixed resolution displays to be used simultaneously without suffering from compatibility limitations. A balanced analog and digital S/PDIF audio de-embed allows easy connection for external amplifiers or DSPs. With a 1U chassis, the SP-618 can be easily fitted in standard 19” equipment racks for a tidy installation.

  • 2160P 4:4:4
    As a standard requirement with the latest WyreStorm products, the SP-618 supports the latest video formats including 4K HDR and Dolby Vision content all in uncompressed HDMI glory.
  • OUTPUT SCALING
    Each of the 8 outputs on the SP-618 feature down scalers, allowing support for mixed resolution distribution of HDMI content to 4K and 1080p display simultaneously.
  • AUDIO DE-EMBED
    Featuring a balanced analog and a digital S/PDIF, easily de-embed HDMI input audio to a secondary audio distribution system without the need for external adapters or converters.
  • EDID MANAGEMENT
    Powerful EDID management in the SP-618 ensures reliable and consistent video distribution. Manage EDID information through the API, rear-panel dipswitches or copy and EDID from a display with the front panel buttons.

Features

  • Uncompressed HDMI signal distribution supporting full 18Gbps bandwidth and 4K60 444 video content
  • Compatible with latest HDR video standards including HDR10, HDR10+ Dolby Vision and HLG
  • Balanced analog audio de-embed and a digital S/PDIF de-embed for distributing audio to an amplifier or DSP
  • Each HDMI output supports 4K to 1080p downscaling to support mixed resolution systems
  • Output downscaling controlled through easy to use dipswitches
  • EDID Management through RS232 API, dipswitches, or front panel Read & Select buttons
  • RS232 API for controlling EDID settings and querying HDMI connection status, resolution, etc.
  • 1U 19” chassis for convenient installation into standard equipment racks

Specifications

AUDIO AND VIDEO

  • Inputs:    1x HDMI In: 19-pin type A
  • Outputs:    8x HDMI Out: 19-pin type A
  • Encoding Data Rate:    Uncompressed 18Gbps
  • End to End Latency:    None
  • Audio Formats:    2ch PCM | Multichannel: LPCM and up to DTS-X and Dolby
Video Resolutions (Max) Video Resolutions
1920x1080p @60Hz 14bit
3840x2160p @60Hz 10bit 4:2:2 HDR10/10+
3840x2160p @60Hz 12bit 4:2:0 Dolby Vision
3840x2160p @50Hz 10bit 4:2:0 HLG
4096x2160p @60Hz 8bit 4:4:4
HDMI
7m/23ft
5m/16ft
5m/16ft
5m/16ft
5m/16ft

  • Supported Standards:    DCI | RGB | HDR10 | HDR10+ | Dolby Vision | HLG | BT.2020
  • Maximum Pixel Clock:    600MHz

COMMUNICATION AND CONTROL

  • HDMI:    HDCP 2.2 | EDID | CEC | DVI/D supported with adapter (not included)
  • RS-232:    1x 4-pin Phoenix (Control)

POWER

  • Power Supply:    100~240V AC 5060Hz
  • Max Power Consumption:    18W

ENVIRONMENTAL

  • Operating Temperature:    32°F ~ 113°F (0°C ~ 45°C) 10% ~ 90%, non-condensing
  • Storage Temperature:    -4°F to ~ 158°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing
  • Maximum BTU:    25 BTU/hr
  • Rack Units | Wall Box:    1U
  • Height With | Without Feet:    44.4mm/1.7in
  • Width With | Without Brackets:    438mm/17.25in
  • Depth With | Without Handles:    184mm/7.25in
  • Weight:    3.7Kg | 8.15lbs

REGULATORY

  • Safety and Emission:    CE | FCC | RoHS | EAC | RCM
